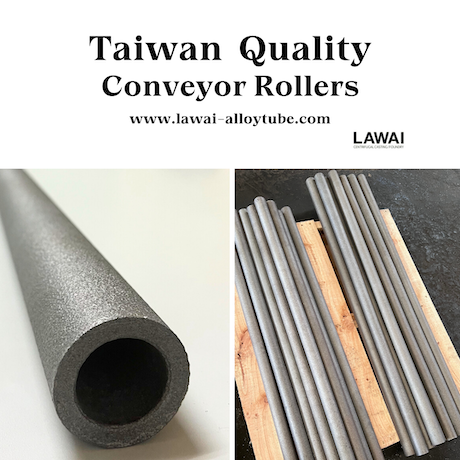

Materials of Stainless Steel Conveyor Roller
►PLEASE SCROLL DOWN, YOU'LL FIND THE TABLES OF GRADE
300 series, Duplex stainless steel, 17-4PH, Nickel-based alloys, Cast iron
Custom alloys ( This is what we can do for you )
Dimensions of Stainless Steel Conveyor Roller
►ALL ARE CUSTOMIZED
Based on your drawings and requirements
Applications of Stainless Steel Conveyor Roller
►WE'LL DO THE BEST TO ASSIST YOU WITH ANY CASE
Heat-treatment industry and industries with continuous casting lines
Others
Features of Stainless Steel Conveyor Roller
Centrifugal casting is without casting defects and holes
One-piece construction - always better than weld
Saving cost beacause of long lifetime
Mechanical properties are almost equal to forging
For the better world, recycled alloys will be used if the project suits
Made in Taiwan is always beyond your expectation
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| HD | A297 HD | J93005 | ||
| HE | A297 HE | J93403 | ||
| HF | A297 HF | J92603 | 308 | S30800 |
| HH-2 | A297 HH | J93503 | 309 | S30900 |
| HI | A 297 HI | J94003 | ||
| HK | A297 HK | J94224 | 310 | S31000 |
| HK-40 | A 351 HK-40 | J94224 | 310 | S31000 |
| HL | A 297 HL | N08604 | ||
| HN | A297 HN | J94213 | ||
| HP | A297 HP | N08705 | ||
| HT | A297 HT | N08605 | ||
| HU | A297 HU | N08004 | ||
| HW | A 297 HW | N08001 | ||
| HX | A297 HX | N06006 | ||
| HPMOD4 | ||||
| SC20-32NB | ||||
| SC25-35NB | ||||
| SC25-35W | ||||
| SC Super2 | ||||
| SC30-50W | ||||
| SC30-50W+CO | ||||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| CF8 | A351/743/744 CF8 | J92600 | 304 | S30400 |
| CF3 | A351/743/744 CF3 | J92500 | 304L | S30403 |
| CF8M | A351/743/744 CF8M | J92900 | 316 | S31600 |
| CF3M | A351/743/744 CF3M | J92800 | 316L | S31603 |
| CK20 | A351/743/744 CK20 | J94202 | 310 | S31000 |
| CF8C | A351/743/744 CF8C | J92710 | 347 | S34700 |
| CG8M | A351/743/744 CG8M | J93000 | 317 | S31700 |
| CG3M | A351/743/744 CG3M | J92999 | 317L | S31703 |
| CF10SMnN (≈Nitronic60) | A351/743/744 | J92972 | ||
| CG6MMN (≈Nitronic50) | A351/743/744 | J93790 | ||
| CN7M (≈ 20Cb-3) | A351/743/744 | N08020 | ||
| CF3M-HM | ||||
| CH20 (≈ 309) | A351/743 | J93400 | ||
| CD20N (≈ CE20N) | A351/451 | N08007 | ||
| Nitronic33 | ||||
| Nitronic40 | ||||
| CN7MS | A744 | J94650 | ||
| CN3MN | A743/A744 | J94651 | ||
| CK3MCuN (≈254SMO) | ||||
| RA330 | ||||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| 1A CD4MCu | A 351 /A 890 | J93370 | ||
| 4A CD3MN | A890/A995 4A CD3MN | J92205 | 2205 | S31803 |
| CD7MCuN | A890 1C CD3MCuN | J93373 | S32550 | |
| 1B CD4MCuN | A890/A995 1B CD4MCuN | J93372 | ||
| DPX-1B MOD | ||||
| 5A CE3MN | A890/A995 5A CE3MN | J93404 | 2507 | S32750 |
| CE8MN | A890/A995 2A CE8MN | J93345 | ||
| CD3MWCuN | A890/A995 6A CD3MWCuN | J93380 | Z100 | S32760 |
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| 50C50Ni+Cb | A 560 | |||
| CW6MC | A494 CW-6MC | N26625 | Inconel 625 | N06625 |
| CY40 | A494 CY-40 | N06040 | Inconel 600 | N06600 |
| N12MV | A494 N-12MV | N30012 | Hastelloy B | N10001 |
| CW12MW | A494 CW-12MW | N30002 | Hastelloy C/C276 | N10002 |
| N7M | A494 N-7M | N30007 | Hastelloy B2 | N10665 |
| CW2M | A494 CW-2M | N26455 | Hastelloy C4 | N06455 |
| CX2MW | A494 CX2MW | N26022 | Hastelloy C22 | N06022 |
| Ni-X | B435 (AMS 5390) | N06002 | Hastelloy X | |
| CZ100 | A494 CZ-100 | N02100 | ||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| CB7Cu-1 | A747 Gr CB7Cu-1 | J92180 | 17-4PH | S17400 |
| CB7Cu-2 | A747 Gr CB7Cu-2 | J92110 | 15-5PH | S15500 |
LAWAI is the No. 1 Stainless Steel Conveyor Rollers manufacturer in Taiwan. We provide customized Stainless Steel Conveyor Rollers for our clients all over the world. The Stainless Steel Conveyor Rollers produced in LAWAI – reliable and beyond your expectation!
